Product Description

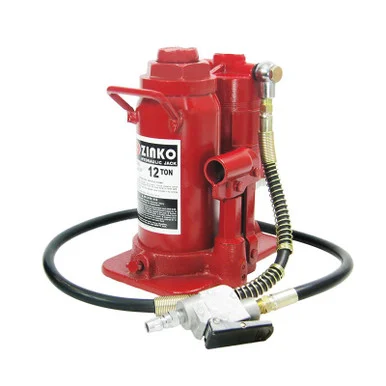

Air Hydraulic Bottle Jack – 12 ton, cast iron base. Turn ordinary manual bottle jack power into air-hydraulic power. When connected to your shop’s air lines, these versatile jacks can safely deliver lifting power with the push of a button, for lifting of heavy cars, trucks and other applications.
Special Features:
- Operates both manually and pneumatically
- Fast and efficient air pump saves lifting time; built-in safety valve to prevent overload
- Heat treated extension screw and release valve adds extra strength and life span
- Extremely strong and well designed swivel head bolt with 360° movement to prevent hose binding
- Spring coil protectors on both ends to prevent punctures
- Rust preventive coating on ram and extension screw
- Convenient push button flap type air operation valve
- Durable ductile iron base with 3 piece zinc plated handle
- Properly placed welded carrying handle for easy transport
| Capacity (Tons) | 12 |
|---|---|
| Lift Time by Air Supply – No Load | 40 |
| Lift Time by Air Supply – Load | 125 |
| Air Pressure Range (psi) | 40-140 |
| Minimum Height (in) | 9.69 |
| Ram Lift (in) | 5.88 |
| Screw Extension (in) | 3.13 |
| Maximum Heights (in) | 18.69 |
| Weight (lbs) | 29.000000 |
